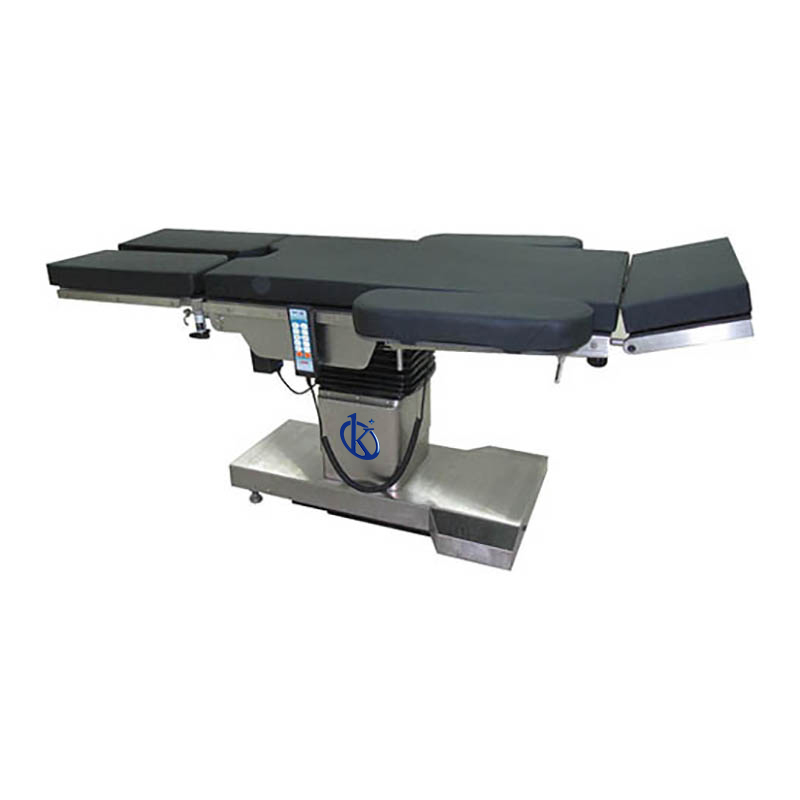

Installation and Commissioning Guide for the YR02158 Operating Table
The YR02158 Operating Table is a hydraulic table designed for surgical procedures, providing versatility and ease of positioning. This guide will walk you through the essential steps for installation and commissioning, ensuring the table operates at its best from the very first use.
Overview of the YR02158 Operating Table
The YR02158 Operating Table is engineered to accommodate a load capacity of 200 kg, featuring a robust hydraulic system for smooth manual control. With a radiotransparent surface, it is compatible with C-arms, making it ideal for a variety of surgical applications. Understanding its features is crucial for ensuring proper installation and usage.
Technical Specifications of the YR02158
| Specification | Details |
|---|---|
| Model | YR02158 |
| Table Length | 2100 mm |
| Table Width | 500 mm |
| Maximum Table Height | 1040 mm |
| Minimum Table Height | 690 mm |
| Trendelenburg Angle | 20° |
| Anti-Trendelenburg Angle | 15° |
| Right Lateral Tilt | 15° |
| Left Lateral Tilt | 15° |
| Backrest Elevation | 75° |
| Backrest Downward Angle | 12° |
| Head Plate Upward Angle | 90° |
| Head Plate Downward Angle | 90° |
| Leg Plate Downward Angle | 90° |
| Leg Plate Split Angle | 130° |
| Kidney Bridge Height | 110 mm |
| Load Capacity | 200 kg |
Unboxing and Initial Setup
Upon receiving your YR02158 Operating Table, carefully unbox the unit and inspect for any shipping damages. The following checklist will guide you through the initial setup process:
- Check all components against the packaging list.
- Ensure that the table surface and hydraulic system are free from obstructions.
- Locate the user manual for specific assembly instructions.
- Prepare the installation area, ensuring adequate space for movement around the table.
Anchoring and Leveling the Operating Table
Proper anchoring and leveling of the YR02158 are essential for safe operation:
- Identify the recommended anchor points as indicated in the user manual.
- Use appropriate wall mounting or floor anchoring hardware as needed.
- Level the table using a spirit level; adjust the legs to ensure stability.
Power-Up Sequence and Configuration
Once anchored and leveled, follow the power-up sequence:
- Connect the hydraulic system to the power source as per the specifications.
- Turn on the main power switch and check for any error codes on the display.
- Perform a calibration check to ensure all hydraulic movements respond correctly.
Common Setup Mistakes
Here are some common mistakes to avoid during installation and commissioning:
- Failing to level the table properly, leading to instability during procedures.
- Incorrect power connections, which may cause system errors.
- Neglecting to perform a calibration test, potentially affecting operational accuracy.
Frequently Asked Questions
What is the load capacity of the YR02158 Operating Table?
The YR02158 Operating Table has a load capacity of 200 kg, making it suitable for a wide range of surgical procedures.
How do I troubleshoot if the hydraulic system is not responding?
Check for any power connection issues and ensure the hydraulic fluid levels are adequate. Refer to the troubleshooting section in the user manual for detailed guidance.
What is the recommended maintenance schedule for the YR02158?
Regular maintenance is crucial for optimal performance. It is recommended to inspect the hydraulic system every three months and perform a full service annually.
Can the YR02158 be used with C-arms?
Yes, the YR02158 Operating Table features a radiotransparent surface, making it compatible with C-arms and enhancing its versatility for surgical applications.
What should I do if I encounter error codes during operation?
Refer to the user manual for a list of error codes and troubleshooting steps. Common solutions include resetting the system or checking hydraulic connections.
Is training available for new operators of the YR02158?
Yes, training sessions are often available, and it is highly recommended that all operators familiarize themselves with the table through hands-on training.
How can I request a quote for the YR02158 Operating Table?
You can easily request a quote through our online platform, which provides a seamless experience for acquiring the YR02158 Operating Table.
