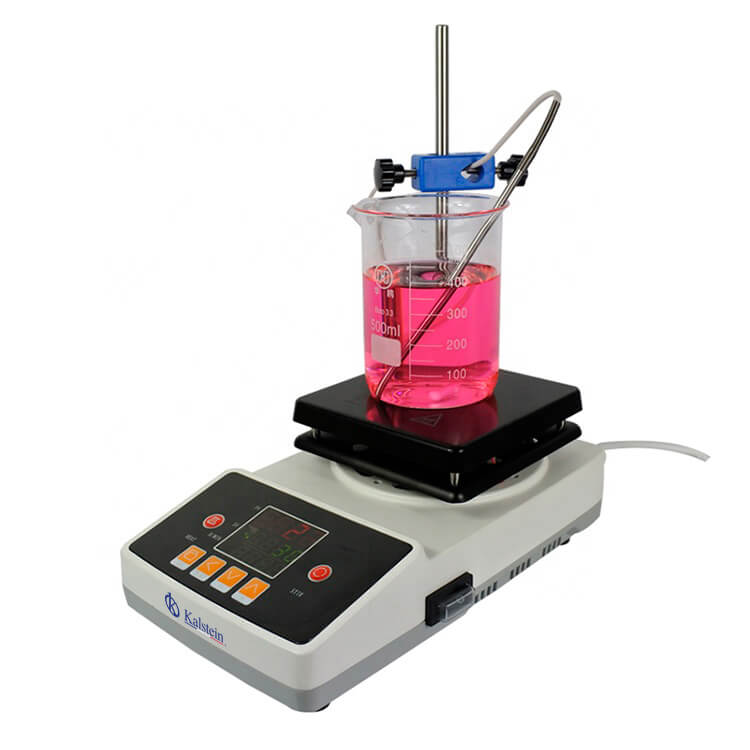

Essential Consumables and Accessories for the YR02941 Intelligent Digital Display Ceramic Top Hotplate Stirrer
The YR02941 Intelligent Digital Display Ceramic Top Hotplate Stirrer is an essential piece of laboratory equipment, recognized for its efficiency, durability, and user-friendly operation. To ensure optimal performance and longevity of the YR02941, it is crucial to utilize compatible consumables, spare parts, and accessories. This article delves into the various consumables and accessories designed for the YR02941, highlighting their importance and usage.
Technical Specifications of the YR02941
| Model | YR02941 (current) |
| Top Plate Dimension (mm) | 140 x 140 |
| Top Plate Dimension (inches) | 5.51 x 5.51 |
| Temperature Control | PID Automatic Control |
| Top Plate Shape | Round or Square |
| Top Plate Material | Ceramic |
| Temperature Range for Machine | Ambient to 400 degrees |
| Maximum Temperature for Top Plate | 325 degrees |
| Upper Material | Both white and black ceramics are available |
| Temperature Display (°C) | Digital Display |
| Temperature Control | PID Automatic Control |
| Temperature Accuracy | +/- 1 degree |
| Probe Type / Thermocouple Sensor | PT100, with internal and external thermocouple |
| Stirring Speed | 100-1800 RPM |
| Stirring Display | Digital Display |
| Stirring Speed Accuracy | +/- 1 RPM |
| Permissible Ambient Temperature | Ambient Temperature up to 40 °C |
| Voltage | 160 - 240V or 110-130V |
| Heating Power Supply (W) | 450 |
| Motor Power Supply | 40 W. DC 20 |
| Machine Power Supply | 500 |
| Stirring Flask Capacity (ml) | 50ML - 2L |
| Overall Dimensions (mm) (L × W × H) | 295 x 190 x 104 |
| Packaging Dimension (mm) | 350 x 250 x 150 |
| Shipping Weight (kg) | 3.5 kg |
| Housing Material | Waterproof and dustproof housing with anti-static coating |
Compatible Consumables for the YR02941
The proper use of consumables can greatly enhance the functionality and effectiveness of the YR02941. Below is a list of essential consumables:
- Stirring Bars: Made of PTFE or ceramic, these are crucial for effective mixing. Available sizes range from 5mm to 30mm.
- Thermocouples: Ensure accurate temperature readings; compatible models include PT100 and K-type thermocouples.
- Heating Elements: Replacement heating elements should match the specifications of the YR02941 for optimal performance.
- Cleaning Solutions: Non-corrosive cleaning agents suitable for ceramic surfaces to maintain hygiene and functionality.
- Covers: Protective covers that can shield the unit from spills and contaminants.
- Calibration Weights: Essential for ensuring that the stirrer operates within specified accuracy limits.
Spare Parts and Accessories
Regular maintenance and access to spare parts are important for keeping the YR02941 in excellent working condition. Here are some recommended spare parts and accessories:
- Replacement Top Plates: Available in both round and square shapes, made from durable ceramic.
- Isolating Thermal Plates: For added protection against overheating and to prolong the life of electronic components.
- Digital Display Units: In case of malfunction, these can be replaced to maintain functionality.
- Power Cords: Ensure you have spare power cords that meet the voltage requirements for the unit.
- Stirring Flasks: Various sizes from 50ML to 2L are needed for different applications.
Operational Best Practices
The YR02941 is built for efficiency, but understanding how to best utilize it will enhance your results:
- Calibration: Regularly calibrate the unit using standard calibration weights.
- Temperature Settings: Adjust the PID control settings based on the desired temperature ranges for your specific applications.
- Stirring Speed: Select stirring speeds according to the viscosity of the material being mixed; start at a lower speed and gradually increase.
- Maintenance: Regularly clean and inspect the hotplate to prevent contamination and ensure longevity.
- Safety Measures: Always use appropriate personal protective equipment when operating the unit and follow lab safety protocols.
Common Issues and Troubleshooting
When using the YR02941, operators may encounter certain issues. Here’s a troubleshooting guide:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Unit does not power on | Power cord disconnected or faulty | Check the power cord and connections; replace if necessary. |
| Error code E-03 | Temperature sensor malfunction | Inspect and replace the temperature sensor. |
| Inconsistent stirring | Incorrect stirring bar size or malfunction | Use a proper stirring bar size; replace if damaged. |
| Heating failure | Faulty heating element | Inspect and replace the heating element. |
| Digital display issues | Faulty display unit | Replace the digital display unit. |
Frequently Asked Questions
What types of stirring bars are compatible with the YR02941?
The YR02941 is compatible with several types of stirring bars, including PTFE and ceramic options. Sizes can vary from 5mm to 30mm, depending on the specific mixing requirements.
How can I maintain the YR02941 for optimal performance?
To maintain the YR02941, ensure regular cleaning with non-corrosive solutions, calibrate using standard weights, and regularly inspect the heating elements and digital displays.
Can I replace the top plate on the YR02941?
Yes, the top plate of the YR02941 can be replaced. Replacement top plates are available in both round and square configurations, constructed from durable ceramic.
What safety precautions should I take when using the YR02941?
Always use personal protective equipment like gloves and goggles. Operate the unit in a well-ventilated area, and review all safety protocols before use.
Is there a warranty for the YR02941?
Yes, the YR02941 typically comes with a standard warranty. It is advisable to check the specific terms provided by the manufacturer for detailed information.
