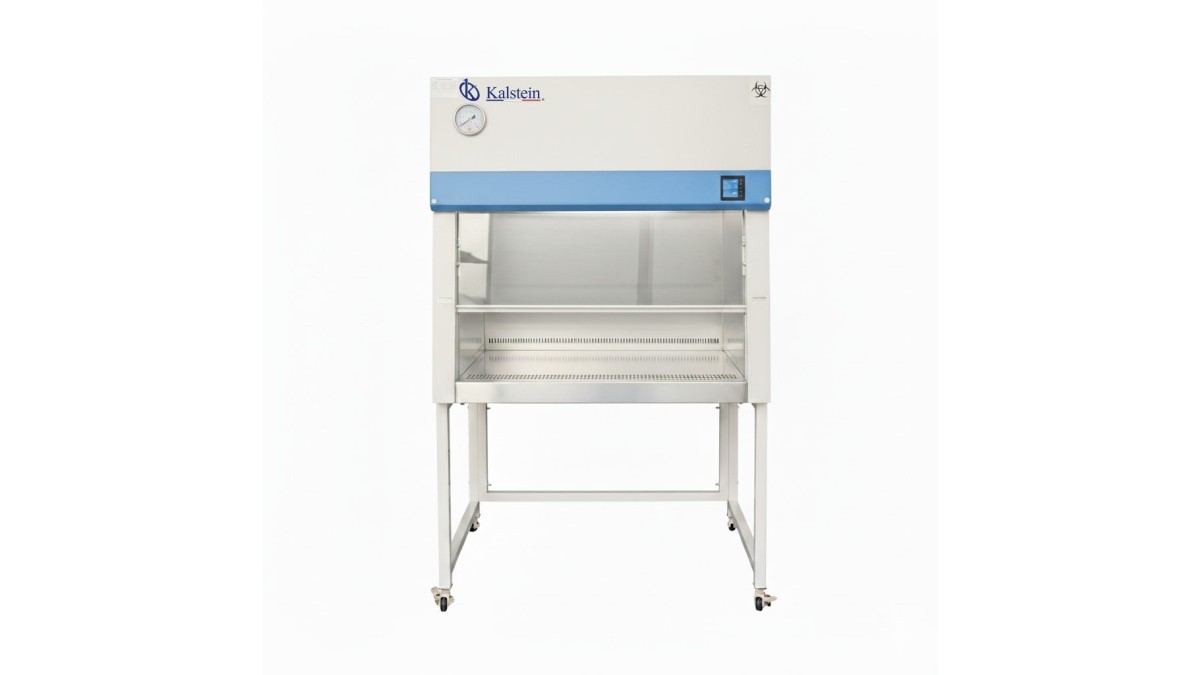

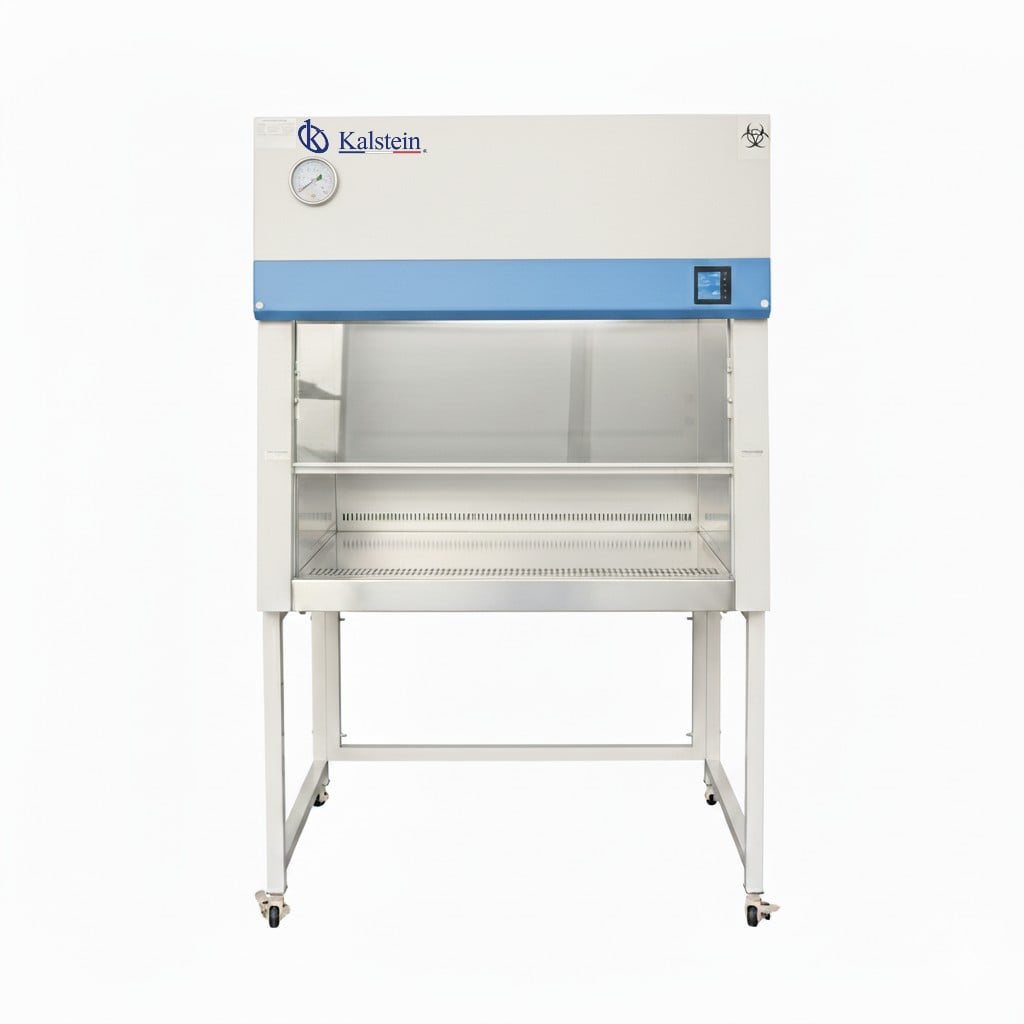

Biosafety Cabin YR06544: A Comprehensive Overview
Product Description
The Biosafety Cabin model YR06544 is a state-of-the-art solution designed to protect personnel, products, and the environment. It operates under the principle of negative pressure, which prevents leaks and ensures a safe working space. The cabin features 70% internal circulation and 30% external exhaust, optimizing air quality and safety.
Constructed from high-quality cold-rolled steel, the working surface consists of a corrosion-resistant physical-chemical plate. Precision CNC laser cutting, combined with an electrostatic epoxy resin surface treatment, guarantees durability and reliability.
The integrated smart control system with an intuitive LCD touchscreen provides a clear understanding of operational status. The biosafety cabinets comply with the international standard ISO14644.1 Class 5, which is equivalent to the US Federal Standard 209E Class 100.
Motor: The YR06544 utilizes a German EBM motor, known for high airflow and low energy consumption. This motor is optimized to reduce turbulence and ensure uniform airflow.
Filtration: The cabin is equipped with high-efficiency external HEPA filters and very high-efficiency ULPA downward filters, providing an exceptional level of air purification.
Market Price
The market price for the Biosafety Cabin YR06544 stands at approximately $1920.00. Below is a comparative table showcasing the specifications and dimensions of different models in this category, highlighting the YR06544 against others:
| Description | YR06543 | YR06544 | YR06545 | YR06546 | YR06547 |
|---|---|---|---|---|---|
| Package Size (mm) | 110*100*140 | 130*100*140 | 160*100*140 | 190*100*140 | 210*100*140 |
| External Size (mm) | 900*760*2250 | 1100*760*2250 | 1300*760*2250 | 1500*760*2250 | 1800*760*2250 |
| Internal Size (mm) | 740*600*600 | 940*600*600 | 1140*600*600 | 1340*600*600 | 1640*600*600 |
| Light | LED fluorescent test lamp with three conditions | ||||
| Work Surface | Brushed stainless steel SUS304# | ||||
| Cabinet | 1.0 mm thick cold-rolled steel plate with an epoxy resin coating on the surface | ||||
| Fan | Built-in 220V, 138W fan, 250mm diameter | ||||
| Filter | Technical parameters for high-efficiency filter without partitions | ||||
| Window | 5 mm tempered glass | ||||
| Lighting and UV | 1 UV disinfection lamp, 2 LED 10W lamps | ||||
| Electrical Outlets | Waterproof 10A outlets x 2, installed on the rear wall | ||||
| Voltage | 220V / 50HZ | ||||
| Filtration and Ventilation | Equipped with HEPA filter x 2, integrated centrifugal fan 300W | ||||
| Airflow | 30% exhaust air, 70% recirculated air | ||||
| Control Panel | Digital LCD control panel | ||||
| Packaging | Complete packaging with rigid cardboard box and wooden box | ||||
| Mobility | High-strength wheels | ||||
Frequently Asked Questions
What is the difference between ULPA and HEPA filters?
The G series utilizes ULPA filters with ultra-high efficiency (99.999% efficiency), while the D series uses HEPA filters with high efficiency (99.995% efficiency). Both are excellent, but ULPA offers a slightly higher level of purity.
What is the accuracy of the downward airflow control?
The accuracy of the downward airflow control is 0.015 m/s, ensuring uniformity and stability of airflow to maintain sterility in the working area.
What sizes are available for the biosafety cabinet?
The biosafety cabinet is available in various sizes, including YR06543, YR06544, YR06545, YR06546, and YR06547, each accommodating different laboratory needs.
What level of cleanliness does the cabinet guarantee?
The cabinet guarantees cleanliness level 5 according to the ISO14644.1 international standard (US Federal 209E class 100), a strict requirement for sensitive environments.
What are the mobility options for the biosafety cabinet?
The cabinet is equipped with high-strength wheels, allowing for easy movement and placement in various laboratory settings.
What type of maintenance is recommended for optimal performance?
Regular maintenance of the filters and checking the calibration of the imported sensors is recommended to ensure optimal performance and safety.
Pros and Cons
Pros:
- Double filtration system: utilizes external HEPA filters and downward ULPA/HEPA filters, ensuring up to 99.999% efficiency.
- Superior safety (negative pressure): the negative pressure design prevents leaks, protecting both the operator and the environment.
- Optimized design: reasonable air duct and optimized negative pressure box ensure uniform airflow.
- High-performance German motor: employs a low-energy and high-volume EBM motor.
- Durable construction: cold-rolled steel resistant to corrosion and epoxy resin surface treatment for longevity.
Cons:
- Environmental requirements: the working environment must be maintained between 10 and 30 °C with relative humidity below 70%.
- Shipping weight: the shipping weight is considerable, ranging from 138 kg to 198 kg (depending on size), complicating transport and installation.
- Flow limitations: although it is a recirculation system (70% internal), the 30% external exhaust requires an appropriate escape ventilation system.
Field Usage
The Class II Type A2 biosafety cabinet is indispensable for handling biological agents of low to moderate risk, such as viruses, bacteria, and cell cultures requiring biosafety measures. It is a standard choice in microbiology laboratories, hospitals, and biotechnological and pharmaceutical research centers, where the protection of the product, personnel, and environment is essential. Its vibration control capacity (mean wave: 3 μm) and stable airflow are crucial for delicate experiments.
Recommendations
To ensure longevity and maximum safety of the biosafety cabin:
- Perform regular maintenance on the filters and check the calibration of the imported sensor.
- Ensure the working environment meets temperature requirements (10-30 °C) and humidity (below 70%).
- Periodically check the inlet flow rate (average of 0.53 m/s to 0.56 m/s) and the downward airflow speed (average of 0.35 m/s) to ensure the effectiveness of the negative pressure protection.
- Use high-strength wheels for initial placement and ensure stability before use.
