Grating Spectrophotometer with 20mm Aperture YR05503
Grating Spectrophotometer with 20mm Aperture YR05503 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

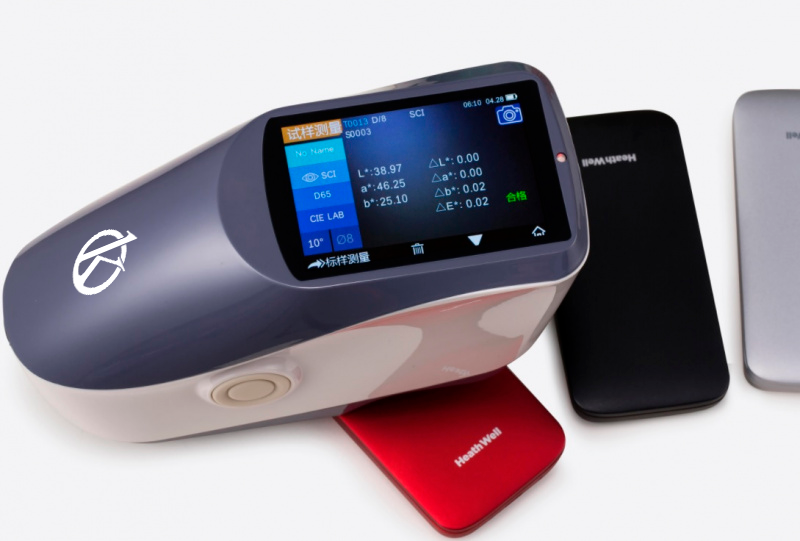

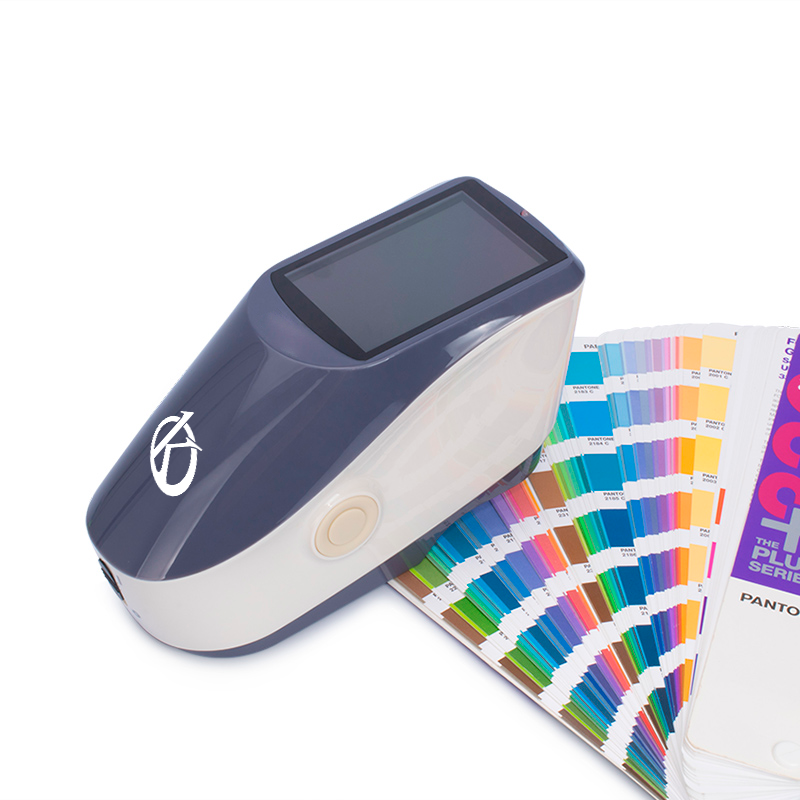

The Grating Spectrophotometer with 20mm Aperture YR05503 is an advanced solution by Kalstein for precise measurement of brightness factor and color coordinates on traffic signs, markings, and reflective films. Designed with a unique 20mm aperture, this spectrophotometer is compatible with GB 2893 and GB/T 18833 standards, ensuring reliable analysis. Versatile enough for laboratory color transfer and fluorescence sample measurement, it is a crucial tool in paints, inks, textiles, and printing industries.
Market Price
The Grating Spectrophotometer is a high-precision instrument with an estimated market price range between 4000 USD and 5000 USD. This price reflects its advanced capabilities and specialized features, making it a valuable investment for businesses prioritizing color accuracy and quality control.
Frequently Asked Questions
What is the primary use of this spectrophotometer?
The YR05503 model is mainly used for measuring the brightness factor and color coordinates of traffic signs, reflective films, and laboratory color transfer analysis.
Can it be used in different industries?
Yes, this spectrophotometer is applicable in various industries, including textiles, inks, paints, and printing for quality control and color transfer assessment.
Advantages and Disadvantages
The key advantage of the YR05503 is its specialized design for traffic signs with a 20mm aperture, ensuring precise measurements. It also supports various colorimetric indices and formulas, enhancing its analytical capabilities. However, a potential disadvantage might be its price, which can be a significant investment for smaller enterprises.
Product Use in the Field
In practical applications, the Grating Spectrophotometer is used to evaluate the color quality of traffic signs to ensure compliance with safety standards. Industries rely on it for accurate lab analysis, meeting color accuracy requirements and improving product quality control across various materials.
Recommendations
To maximize the benefits of the Grating Spectrophotometer, regular calibration with the provided white and black calibration boards is recommended. Additionally, ensuring proper handling and storage will prolong the device's life and maintain measurement accuracy. Explore Kalstein Plus for automated quotations and enhance your procurement process efficiently!
Features
- 20mm aperture specifically for traffic signs
- Compliance with international standards
- Advanced double array CMOS sensor
- 3500-measurement battery life
- USB and Bluetooth connectivity
- Capacitive touch screen interface
Technical Specifications
| Model | YR05503 |
| Illumination/Observation system | 45/0(45 ring-shaped illumination, vertical viewing); |
| Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833 | |
| Features | 20mm aperture special design for traffic signs , It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually. |
| It is used for accurate analysis and transmission of laboratory color, also for Fluorescence sample color measurement . | |
| Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. | |
| Integrating Sphere Size | Φ48mm |
| Light Source | Combined LED Light, UV Light |
| Spectral separation device | Concave Grating |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm |
| Wavelength Pitch | 10nm |
| Half Bandwidth | 10nm |
| Reflectance Range | 0~200% |
| Measuring Aperture | Φ20mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV，HunterLAB,βxy |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter） |
| Other Colorimetric Index | WI(ASTM E313，CIE/ISO,AATCC,Hunter)， |
| YI(ASTM D1925，ASTM 313), | |
| MI (Metamerism Index), | |
| Staining Fastness, Color Fastness, Color Strength, Opacity,Supporting Colorimetric Polygon Tolerance | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30) |
| Display Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
| Measurement Time | About 1.5s |
| Repeatability | Spectral reflectance: Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%) |
| Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Measurement mode | Single Measurement, Average Measurement(2-99) |
| Size(L*W*H) | 184*77*105mm |
| Weight | About 600g |
| Power source | Li-ion battery. 5000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB, Bluetooth 4.0 |
| Data memory | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Chinese,English |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation)） |

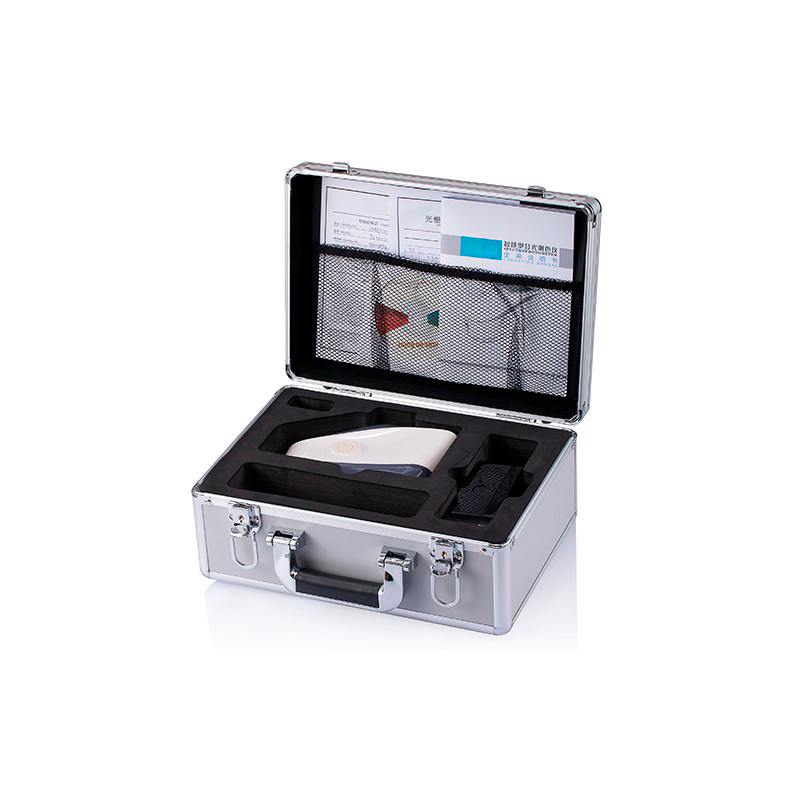

| Standard Accessory | Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover. |
| Optional Accessory | Micro Printer, Powder Test Box, Universal test components, Locating Plate |
| Notes: The specifications are subject to change without notice. | |
