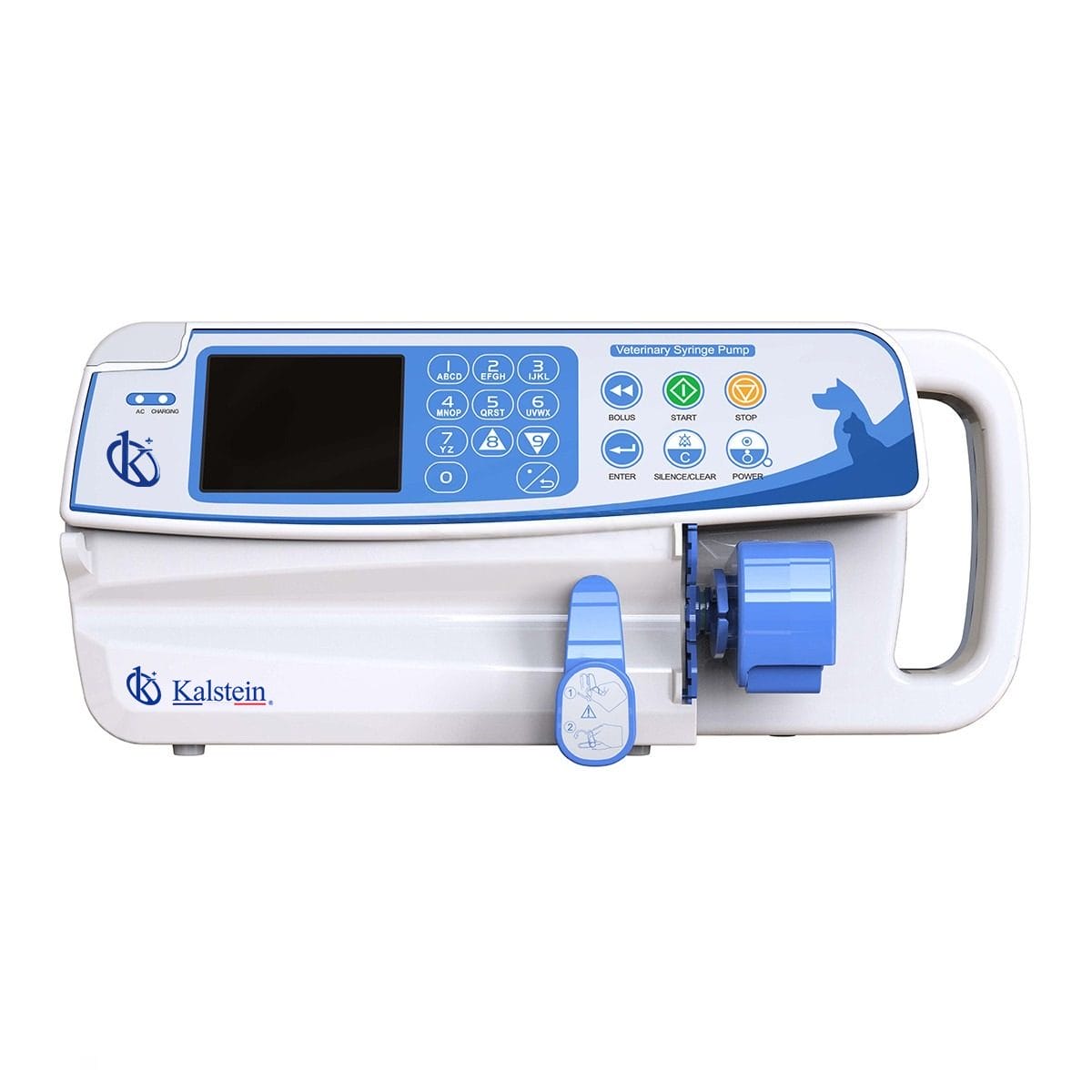

Veterinary Syringe Pump YR06185
Veterinary Syringe Pump YR06185 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Veterinary Syringe Pump YR06185 is an advanced solution for precise and reliable infusion therapy in veterinary settings. With its large, vibrant LCD display, this syringe pump offers real-time dynamic pressure monitoring and intelligent syringe recognition technology to accommodate different syringe brands and sizes, including 5ml, 10ml, 20ml, 30ml, and 50ml/60ml. Designed for versatility and ease of use, the pump includes a 90-degree rotatable pole clamp, adaptable for both vertical IV poles and horizontal bars, ensuring optimal placement flexibility. Its dual CPU architecture enhances safety during infusions, while the anti-bolus function and adjustable alarms provide comprehensive control and security. The YR06185 model is suitable for various infusion modes, such as dose, time, and rate modes, making it an indispensable tool in the veterinary field.
Market Price
In the marketplace, veterinary syringe pumps like the YR06185 vary in price based on features and brands. Typically, the price range for these pumps is between $800 and $1600, providing a broad spectrum for both budget-conscious buyers and those seeking advanced functionalities. Considering the advanced features of the YR06185, it stands out as a competitive and cost-effective option within this price segment.
Frequently Asked Questions
What types of syringes can be used with the YR06185? This pump is compatible with various brands of sterile syringes, specifically in sizes 5ml, 10ml, 20ml, 30ml, and 50ml/60ml.
Is the YR06185 easy to set up and operate? Yes, the pump is designed for user-friendly operation, featuring an intuitive interface and adjustable parameters to suit different user needs.
How is the battery performance of this syringe pump? The rechargeable Li-polymer battery can operate for more than 12 hours when fully charged, allowing for extended use in various conditions.
Advantages and Disadvantages
The YR06185 offers numerous advantages, including its intelligent recognition technology, dual CPU safety feature, and compatibility with multiple syringe sizes, ensuring versatility and safety. The large, colorful LCD screen also provides a user-friendly experience. However, one possible disadvantage might be the initial learning curve for practitioners unfamiliar with digital pumps.
Product Use in the Field
The Veterinary Syringe Pump YR06185 is primarily utilized in veterinary clinics and hospitals for precise administration of fluids and medications. Its ability to operate under various modes makes it ideal for tailored infusion therapies, vital for critical and intensive care scenarios in veterinary medicine.
Recommendations
For optimal performance, it is recommended to calibrate the pump according to the instructions provided. Regular maintenance and checking of the battery condition will ensure prolonged operation and reliability. Utilizing the various alarms and safety features can also assist in monitoring and avoiding potential infusion issues.
Features
- Large & colorful LCD display
- Historical record storage
- 90-degree rotatable pole clamp
- Intelligent syringe recognition technology
- Dynamic pressure display
- Dual CPU for enhanced safety
- RS232 interface support
- Adjustable buzzer volume
- Anti-bolus functionality
- Comprehensive visual and audible alarms
Technical Specifications
| Model | YR06185 |
| Infusion mode | Dose mode, Time mode, Rate mode |
| Applicable syringes | Various brands of sterile syringes: 5ml,10ml,20ml,30ml,50ml/60ml |
| Accuracy | ±2% (after syringe correct calibration) |
| Infusion rate | 5ml syringe: 0.1 -150ml/h 10ml syringe: 0.1 -300ml/h 20ml syringe: 0.1 -600ml/h 30ml syringe: 0.1 -900ml/h 50ml syringe: 0.1 -1500ml/h |
| Volume to be infused (VTBI) | 0～1000 ml |
| Volume Infused (∑) | 0～9999.9 ml |
| KVO rate | 0.1-2 ml/h adjustable; default value: 0.1ml/h |
| Bolus rate | 5ml syringe: 100-150ml/h 10ml syringe: 100-300ml/h 20ml syringe: 100-600ml/h 30ml syringe: 100-900ml/h 50ml syringe: 100 -1500ml/h |
| Alarms | Infusion completion, Empty, Occlusion, Near completion, Low battery, Syringe disengaged, No AC power supply, Battery exhausted, Malfunction etc. |
| Power supply | AC: 100~240V, 50/60Hz DC: 12V ±1.2V |
| Power consumption | 25VA |
| Nurse call alarm | Optional |
| Classification | Class I, type CF |
| Dimensions | 300(L)x 130(H)x 125 (W)mm, not including pole clamp |
| Net weight | 1.8KG |
| Waterproof Level | IPX3 |
| Occlusion pressure | (40.0-160.0)kpa |
| 3 adjustable occlusion pressure settings | low, middle and high |
| Battery | Rechargeable Li polymer battery,7.4V, 1900mAh Can operate more than 12 hours after fully charged at 5ml/h., temperature 25℃ |
| Battery recharge time | 10h with power on, 3h with power off |
| Operating conditions | Temperature: 5℃~40℃, Relative humidity: 10~95%, Atmosphere pressure: 86～106kPa |
| Transport conditions | Temperature: -20℃~+60℃, Relative humidity: 10~95%, Atmosphere pressure: 50～106kPa |
| Storage conditions | Temperature: -20℃~+45℃, Relative humidity: 10~95%, Atmosphere pressure: 50～106kPa |
